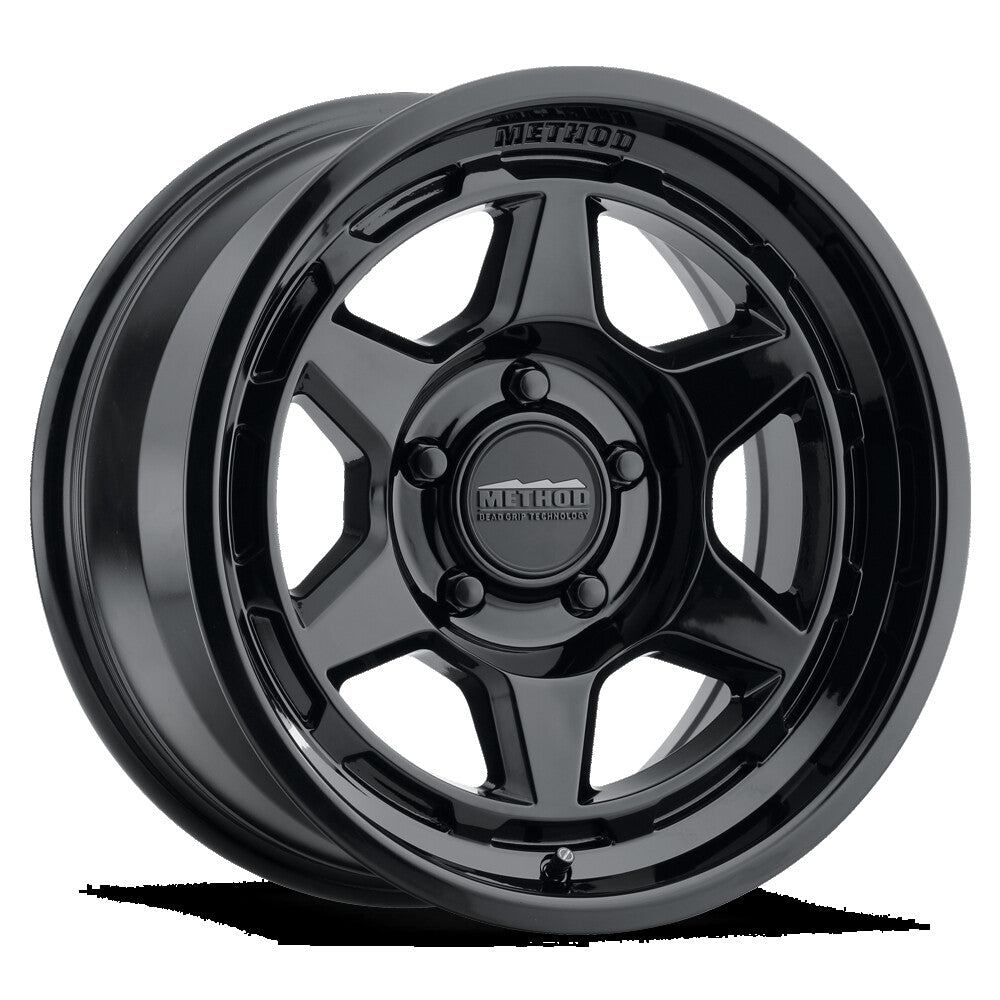

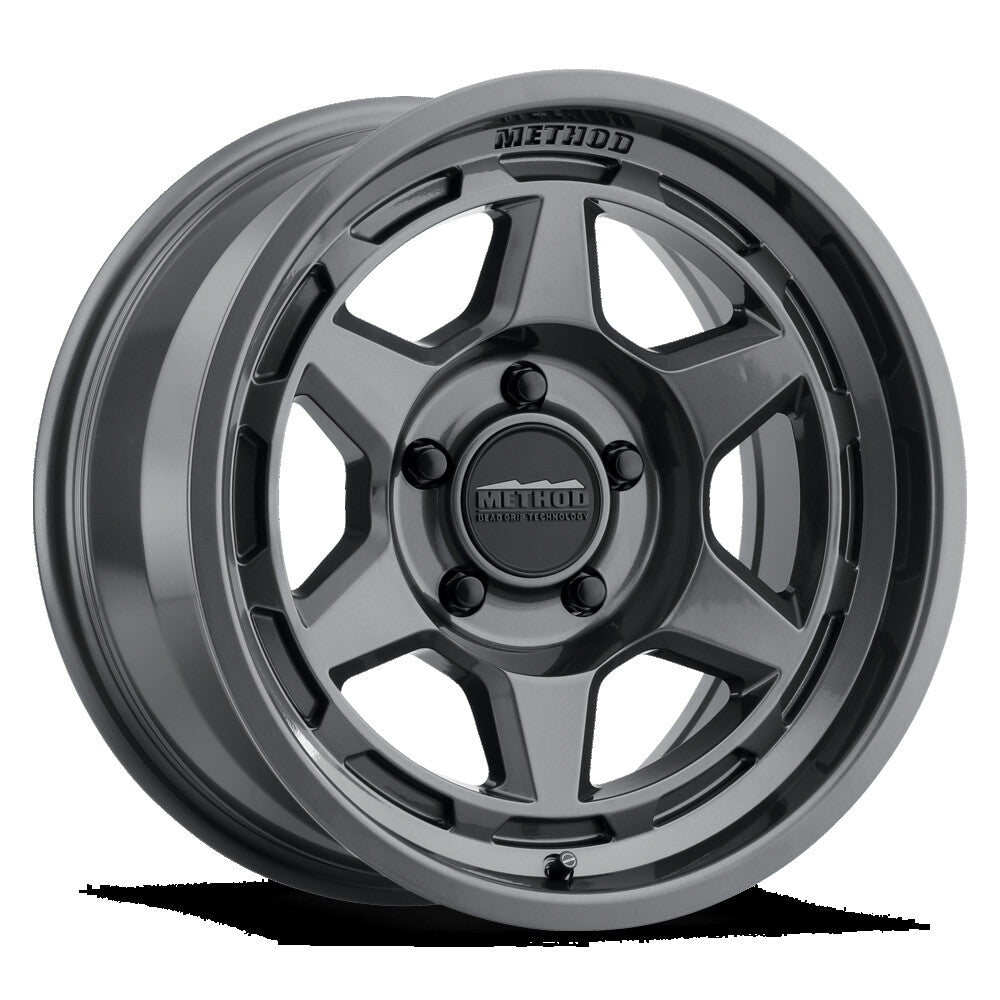

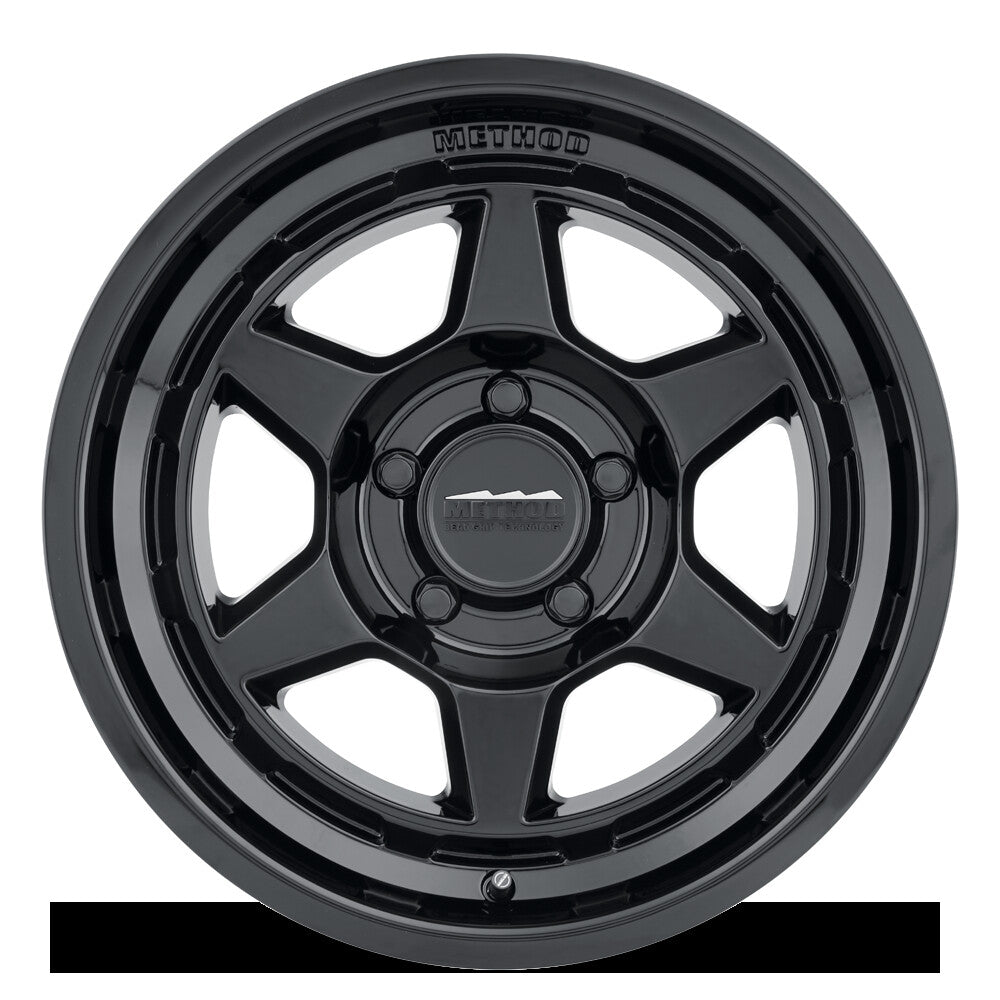

MR708 Bead Grip, 17x8.5, Method Race Wheels

MR708 Bead Grip, 17x8.5, Method Race Wheels

MR708 Bead Grip, 17x8.5, 0mm Offset, 5x5, 71.5mm Centerbore, Gloss Black, Method Race Wheels
$366.00
$366.00
Skip to product information
MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
  • MR708 Bead Grip, 17x8.5, Method Race Wheels
MR708 Bead Grip, 17x8.5, Method Race Wheels

MR708 Bead Grip, 17x8.5, Method Race Wheels

$366.00
$366.00
Title

Method Race Wheel's 708 features a fresh, updated take on the classic six spoke design. Featuring Method's patented Bead Grip Technology, this wheel's classic styling is designed to tackle any trail.

The 708 has large, chamfered edges, a six window design, and is paired with a Method Bead Grip center cap. Patented Bead Grip Technology integrates grooves, found on both the inner and outer bead seat, to engage the tire bead for a stronger hold under extreme side load and lower air pressures.

Features and Benefits:

  • Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
  • Solid A356 aluminum with T6 heat treatment construction
  • Rugged six spoke design with debossed Method logo
  • Aggressive safety hump on bead seats further prevents debeading
  • Reinforced inner lip taken from Mrw race wheel increases strength
  • Snap-in center cap with embossed Method Bead Grip logo.
  • Push through center cap with embossed Method Bead Grip logo for 8 lug applications
  • Hub centric fitments for common applications
  • Industry’s best lifetime structural warranty
  • Strong 2650 lbs. to 3640 lbs. load ratings

Details:

  • Series: TRAIL (7XX)
  • Model: MR708 Bead Grip
  • Wheel Diameter Inch: 17 Inch
  • Wheel Width Inch: 8.5 Inch
  • Bolt Pattern: 5x5
  • Bolt Hole: 5
  • Bolt Diameter: 5
  • Offset mm: 0 mm
  • Backside Spacing Inch: 4.72 Inch
  • Hub Bore mm: 71.5 mm
  • Wheel Weight LBS: 28.58415 LBS
  • Max Load LBS: 2650 LBS
  • Color/Finish: Gloss Black
  • Application: 17x8.5, 5x5, 0 OS, 2650 lbs
  • Cap Part: CP-T080K86
  • Cap Type: Snap In
  • Hub Centric Yes/No: No
  • Lug Hole Diameter mm: 16.2 mm
  • Lug Taper Angle: 60
  • Mount Pad Diameter mm: 175 mm
  • Spoke Depth At 90mm: 4.1
  • Spoke Depth At 100mm: 20.4
  • Spoke Depth At 120mm: 41.6
  • Spoke Depth At 160mm: 53.5
  • Inner Wheel Radius At 50mm: 210.86
  • Inner Wheel Radius: 207.78
  • Cap Bore mm: 71.5 mm
  • Cap Clearance Height mm First Obstruction: 42.8
  • Cap Clearance Height mm End Of Cap: 42.8
  • Lip Size mm: 32 mm
  • Lip Size Inch: 1.26 Inch
  • CBM: 0.0766168399999998
