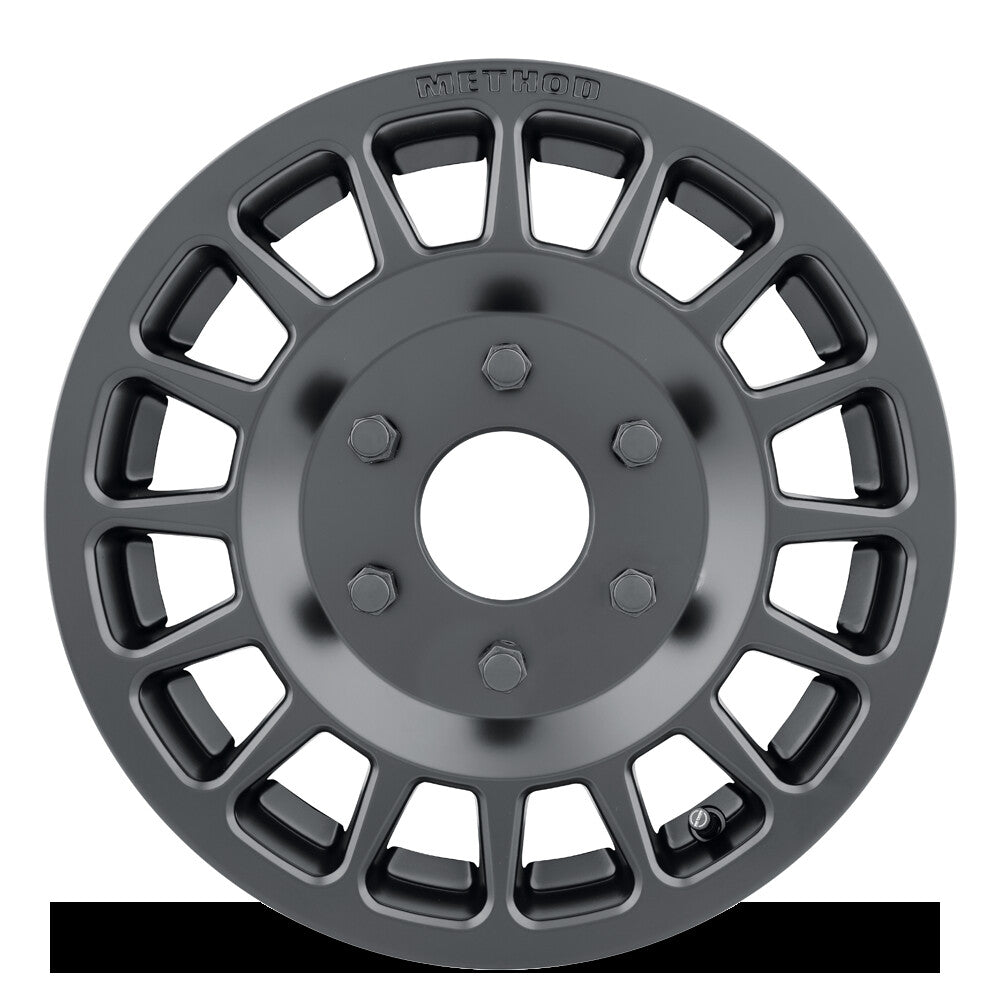

MR407 Bead Grip, 15x6, 5+1/+51mm Offset, 6x5.5, 78.3mm Centerbore, Method Race Wheels

The 407 Bead Grip UTV wheel was developed to endure the rigors of cross country rallies and desert races like the Dakar. The hub of the wheel was cut and designed to remove any unnecessary material to reduce weight.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Iconic rally inspired multi-spoke design with debossed Method logo on outer lip
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength

Details:

• Series: UTV (4XX)
• Model: MR407 Bead Grip
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 6 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 51 mm
• Backside Spacing Inch: 5.5 Inch
• ATV Offset B+F: 5+1
• Hub Bore mm: 78.3 mm
• Wheel Weight LBS: 17.1960564504204 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Matte Black
• Application: 15x6, 6x5.5, 51 OS, 1600 lbs
• Cap Type: None
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 191 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 3
• Spoke Depth At 120mm: 15
• Spoke Depth At 160mm: 16
• Inner Wheel Radius At 50mm: 171
• Inner Wheel Radius: 167
• Lip Size mm: 0 mm
• Lip Size Inch: 0 Inch
• CBM: 0.047612796
